HEINZMANN - Experts for rail traction applications

Our solutions have proven themselves in countless applications.

Do you have any questions? We will be happy to answer them!

   SEND MESSAGE
 +49 7673 8208-0

HEINZMANN common rail system on GM185V-VG-CR

Systems & Components

  • ODYSSEUS Common Rail Fuel Injection System
    • HDP-K3 High Pressure Pump
    • MVC 01-20 EFI Control
    • ICR-DS-200 Injector
    • RPLV-2S High Pressure Limiting Valve
  • DcDesk 2000 configuration and visualisation tool
  • PEGASOS Control System

HEINZMANN has successfully completed the equipping of a GM185V-VG-CR diesel engine for locomotives with a common rail fuel injection system. The GM185V-VG-CR engine family from the Hungarian engine manufacturer Ganz Motor Kft. based in Budapest is the revised version of the S.E.M.T. Pielstick PA4V 185VG engine family. These are typical high-speed engines that cover a wide power range depending on the number of cylinders. They are manufactured under licence worldwide and are primarily used in locomotives.

The Callenge:
The aim of equipping the vehicle with a common-rail fuel injection system was to fulfil the Stage IIIA emissions standard in accordance with Directive 97/68 EC.

The HEINZMANN Solution:
Compliance with the emission standard was achieved with the following components: a high-pressure pump, a EFI control system and injectors for pre-chamber injection. With an additional diesel particulate filter, even Stage IIIB can be achieved.

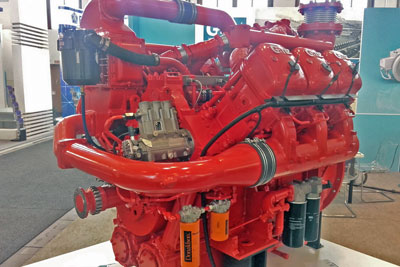

HEINZMANN Common-Rail-System auf Dieselmotor GANZ 6 GM / HEINZMANN Common Rail system on GANZ 6 GM diesel engineGM185V-VG-CR Engine with CR Components

HEINZMANNN Common-Rail System auf Bo-Bo-Lokomotive / HEINZMANN Common Rail System on Bo-Bo LocomotiveBo-Bo-Locomotive with retrofitted engine

HEINZMANNN Common-Rail System auf Bo-Bo-Lokomotive / HEINZMANN Common Rail System on Bo-Bo LocomotiveBo-Bo-Locomotive

Bo-Bo-Locomotive

HEINZMANN common rail system on GM185V-VG-CR

HEINZMANN has successfully completed the equipping of a GM185V-VG-CR diesel engine for locomotives with a common-rail fuel injection system. The goal of fulfilling the Stage IIIA emission standard in accordance with Directive 97/68 EC was exceeded, as even Stage IIIB can be achieved with an additional diesel particulate filter.

High Pressure Pump HDP K3

Read more ...
Country Link

High-speed trains with Viking35

CountryLinks are the high-speed passenger trains which travel along the west coast of Australia. 3 of the existing power cars originally equipped with the reliable and long serving Viking22 traction control panels have been successfully upgraded to the latest Viking35 from REGULATEURS EUROPA (RE).

Viking35

Read more ...
TEM-2 Locomotive

EFI Retrofit on Penzadieselmash D50 Engine

HEINZMANN has successfully finished the conversion of Ukrainian TEM2 locomotive in field use from conventional to electronic fuel injection control.The electronically actuated E-PPN Injection Control Valves were used instead of the hydraulic-mechanical speed governor of the Penza D50 combustion engine.

LAVINIA E-PPN System

Read more ...
TEM-7 Locomotive

EFI Retrofit on Kolomna D49 Engine

HEINZMANN has successfully finished the conversion of a Russian TEM-7 locomotive in field use from conventional to electronic fuel injection control. The electronically actuated E-PPN Injection Control Valve was used to supplement the mechanical fuel injection system of the Kolomna D49 combustion engine.

High Pressure Pump HDP K3

Read more ...
HXN3B Locomotives

Conversion to Solenoid Valve Injection of HXN3B Locomotives

HEINZMANN China has equipped a series of HXN3B locomotives, which are widely used as traction machines in China. The installed MVC 01-20 control system is used as an interface to the locomotive system and for signal processing with regard to external modules.
HXN3B Lokomotive mit MVC 01-20

Read more ...
ChME-3 6221 and 6831

E-PPN Retrofit at Locomotives ChME-3 6221 and 6831

In Ukraine, the installation of a locomotive control system with EPPN valves was carried out on locomotives ChME-3 with serial numbers 6221 and 6831. The commissioning of the locomotive control systems was carried out according to the contract with the company "UkrTransDiesel".

E-PPN Ventil
