Optimal control technology for any type of gas engine

HEINZMANN butterfly throttle valves control the quantity of the gas and air mixture. Furthermore, in special applications the throttle valve can be used as a gas valve to control mixture quality. The precise manufactured valves allow optimum engine control and an exceptional lifetime.

Throttle Valves

DK 50

DK 100

DK 140

DK 200

DK 300

DK 400

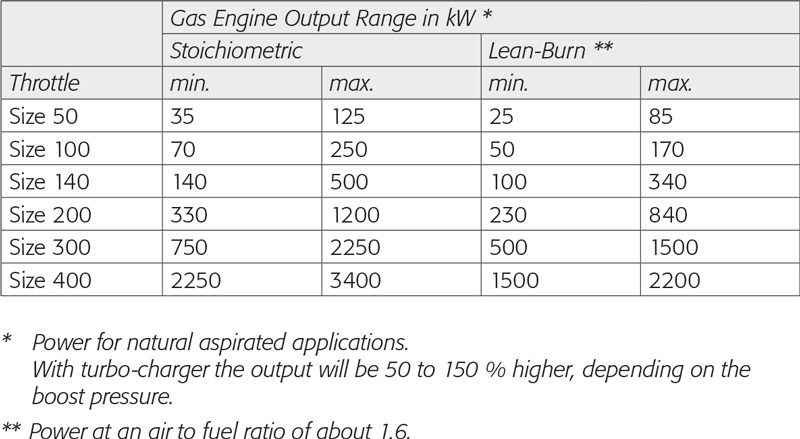

Throttle Valves

HEINZMANN throttle valves control the flow rate of the gas-air mixture. Thanks to the wealth of sizes from DK 50 to DK 400 and the dense design, these models can handle a wide range of power outputs and operating pressures. The control angle for the throttle valves is 75°. Both control directions can be used in equal measure.

Throttle Valves Uebersicht

Suitable for naturally aspirated engines and turbocharged engines
Suitable for all gas types

Bearings ensure little torque is required
Shaft and throttle valve made of stainless steel

Standard flange sizes
No maintenance required

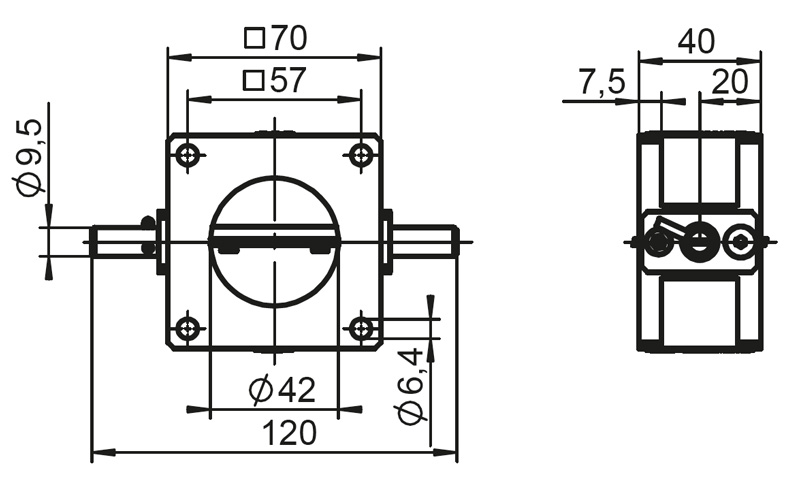

DK 50

Throttle Valve

Technical data

Output range stoichiometric: 35 ... 125 kW
Output range lean-burn: 25 ... 85 kW
Diameter Ø: 42 mm
Operating temperature: -20 ... +150 °C
Max. boost pressure: 4 bar abs.

More information

Technical Drawing

DK 100

Throttle Valve

Technical data

Output range stoichiometric: 70 ... 250 kW
Output range lean-burn: 50 ... 170 kW
Diameter Ø: 68 mm
Operating temperature: -20 ... +150 °C
Max. boost pressure: 4 bar abs.

More information

Technical Drawing

DK 140

Throttle Valve

Technical data

Output range stoichiometric: 140 ...500 kW
Output range lean-burn: 100 ... 340 kW
Diameter Ø: 85 mm
Operating temperature: -20 ... +150 °C
Max. boost pressure: 4 bar abs.

More information

Technical Drawing

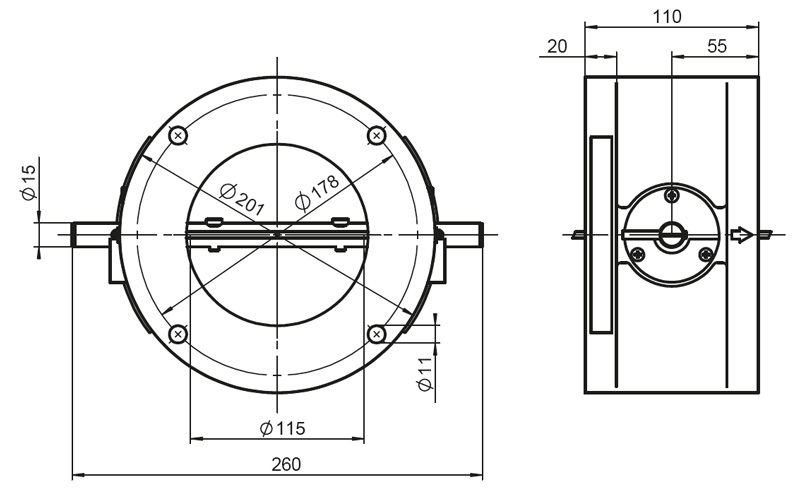

DK 200

Throttle Valve

Technical data

Output range stoichiometric: 330 ... 1,200 kW
Output range lean-burn: 230 ... 840 kW
Diameter Ø: 115 mm
Operating temperature: -20 ... +150 °C
Max. boost pressure: 4 bar abs.

More information

Technical Drawing

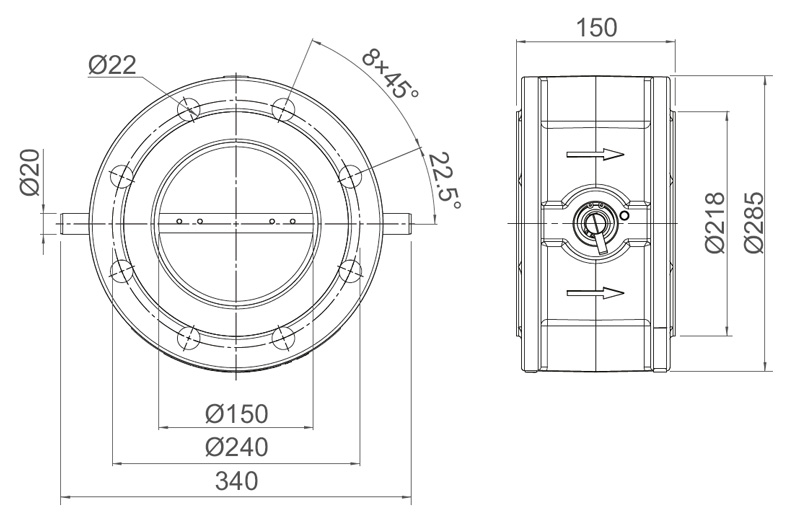

DK 300

Throttle Valve

Technical data

Output range stoichiometric: 750 ... 2,250 kW
Output range lean-burn: 500 ... 1,500 kW
Diameter Ø: 150 mm
Operating temperature: -20 ... +150 °C
Max. boost pressure: 4 bar abs

More information

Technical Drawing

DK 400

Throttle Valve

Technical data

Output range stoichiometric: 2,250 ... 3,400 kW
Output range lean-burn: 1,500 ... 2,200 kW
Diameter Ø: 180 mm
Operating temperature: -20 ... +150 °C
Max. boost pressure: 4 bar abs.

More information

Technical Drawing

Throttle Valves with Actuators

DK 100 / StG 3

DK 140 / StG 3⁺

DK 200 / StG 3⁺

DK 140 / StG 2040

DK 100 / StG 2010

DK 200 / StG 2080

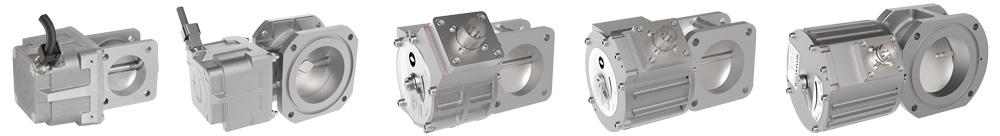

Throttle Valves with Actuators

HEINZMANN throttle valves with actuators are the ideal components for ensuring optimal engine control, including for turbocharged engines. As throttle valves, they regulate the engine speed by metering the mixture accordingly, and boast an unusually long service life. What’s more, they can be used in special applications as a gas valve in order to control the air-fuel ratio. Alternatively, they can also be used as a turbo bypass valve.

Drosselklappen Aktuatoren Gruppe

Suitable for naturally aspirated engines and turbocharged engines

Available with return spring

High torque in both directions

DK 100 / StG 3

Throttle Valve with Actuator

Technical data

Output range stoichiometric: 70 ... 250 kW
Steady state torque: approx. 1.5 Nm
Ø Throttle valve: 48 | 60 | 68 mm
Boost pressure at valve: max. 5.8 bar abs.
Response time: less than 40 ms

More information

Technical Drawing

DK 140 / StG 3⁺

Throttle Valve with Actuator

Technical data

Output range stoichiometric: 140 ... 500 kW
Steady state torque: approx. 3 Nm
Ø Throttle valve: 85 mm
Boost pressure at valve: max.8 bar abs.
Response time: less than 40 ms

Weitere Informationen

Technical Drawing

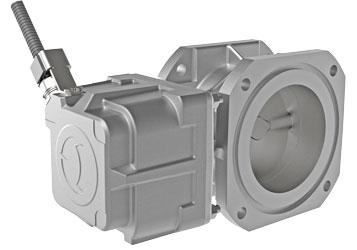

DK 200 / StG 3⁺

Throttle Valve with Actuator

Technical data

Output range stoichiometric: 300 ... 1.200 kW
Steady state torque: approx. 3 Nm
Ø Throttle valve: 80 | 90 | 100 | 110 mm
Boost pressure at valve: max.4 bar abs.
Response time: less than 40 ms

More information

Technical Drawing

DK 140 / StG 2040

Throttle Valve with Actuator

Technical data

Output range stoichiometric: 140 ... 500 kW
Steady state torque: 3.4 Nm
Ø Throttle valve: 85 mm
Boost pressure at valve: max. 4 bar abs.
Response time: max. 70 ms

More information

Technical Drawing

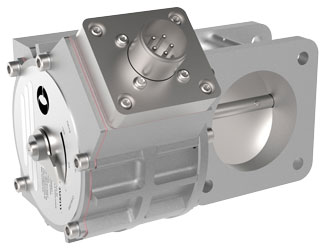

DK 100 / StG 2010

Throttle Valve with Actuator

Technical data

Output range stoichiometric: 70 ... 250 kW
Steady state torque: 0.7 Nm
Ø Throttle valve: 68 mm
Boost pressure at valve: max. 4 bar abs.
Response time: max. 60 ms

More information

Technical Drawing

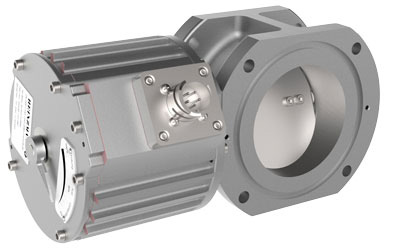

DK 200 / StG 2080

Throttle Valve with Actuator

Technical data

Output range stoichiometric: 350 ... 1.200 kW
Steady state torque: 4.2 Nm
Ø Throttle valve: 110 mm
Boost pressure at valve: max. 4 bar abs.
Response time: max. 85 ms

More information

Technical Drawing

Throttle Valves with Positioner

DK 100/StG 3-PD | DK 100/StG 3⁺-PD

DK 140 / StG 2080-PD

DK 200/StG 3-PD | DK 200/StG 3⁺-PD

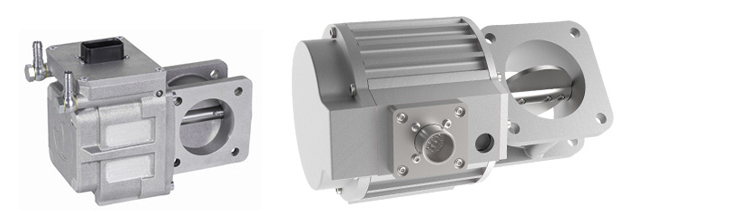

Throttle Valves with Positioner

HEINZMANN throttle valves with integrated positioner are intended for small and medium-sized gas engines. The direct-acting integrated actuator operates in 4Q mode. It is supplied with the tried-and-tested contactless position feedback and an integrated return spring.

Throttle Valve with Positioner

Fast response

No maintenance required

Compact

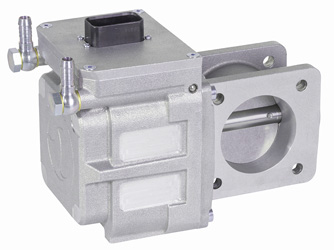

DK 100/StG 3-PD | DK 100/StG 3⁺-PD

Throttle Valve with Positioner

Technical data

Voltage supply: 18 ... 32 VDC, nom. 24 VDC
Operating temperature range: -20 ... +100 °C
Ø Throttle valve: 48 / 60 / 68 mm
Boost pressure at valve: max. 5.8 bar abs.
Response time: less than 40 ms

More information

Technical Drawing

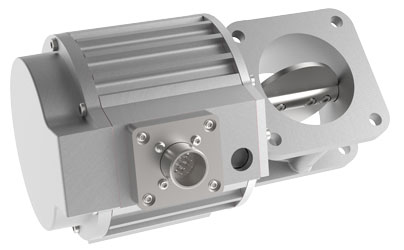

DK 140 / StG 2080-PD

Throttle Valve with Positioner

Technical data

Voltage supply: 18 … 33 VDC
Ambient tempertaure: -25 … +90 °C
Ø Throttle valve: 85 mm
Boost pressure at valve: max. 8 bar (abs.)
Response time: 90 ms

More information

Technical Drawing

DK 200/StG 3-PD | DK 200/StG 3⁺-PD

Throttle Valve with Positioner

Technical data

Voltage supply: 18 ... 32 VDC, nom. 24 VDC
Operating temperature range: -20 ... +100 °C
Ø Throttle valve: 80 / 90 / 100 / 110 mm
Boost pressure at valve: max. 4 bar abs.
Response time: less than 40 ms

More information

Technical Drawing
