Technologies empowering efficiency

EGR Valves

Exhaust gas recirculation (EGR) minimises the formation of nitrogen oxides (NOx) in combustion engines. HEINZMANN can provide bespoke EGR valves suitable for on-road and off-road vehicles, industrial and stationary applications, for use on locomotives and ships, as well as for generators. HEINZMANN offers comprehensive development services with both current and future exhaust gas limits in mind.



  • Overview EGR Valves
  • Flat housing
  • Cone housing
  • Housing with flange

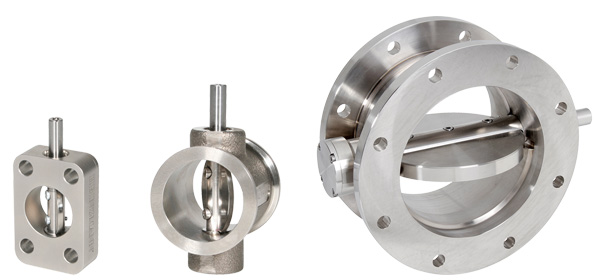

EGR Valves

HEINZMANN offers various EGR valves that have been tailored to different applications.

EGR Valves

  • Resistant to high temperatures and corrosion
  • Optimal sliding properties
  • Control angle of up to 90°

Flat housing

Technical data

  • Diameter: 30, 40, 50, 60, 66, 70, 90 mm
  • Operating temperature: -40 ... +550 °C; up to +750 °C on request
  • Max. delta pressure: 5 bar abs.

More informatoin

Technical Drawing

Dimensions

Cone housing

Technical data

  • Diameter: 30, 40, 50, 60, 70 mm
  • Operating temperature: -40 ... +550 °C; up to +750 °C on request
  • Max. delta pressure: 5 bar abs.

More information

Technical Drawing

Dimensions

Housing with flange

Technical data

  • Diameter: 120, 170, 200 mm
  • Operating temperature: -40 ... +550 °C; up to +750 °C on request
  • Max. delta pressure: 5 bar abs.

More information

Technical drawing

Dimensions
