As it triggers the combustion process of the air-fuel mixture, the ignition system has major influences on performances and emissions of gas fuelled engines. With PHLOX Ignition Systems HEINZMANN offers complete solutions tailored for all types of gas engines;
All needed components, such as ignition control units, coils, cable harnesses, trigger discs, sensors and spark plugs, are available in an integrated solution.
Ignition Controls
PHLOX III
PHLOX II
Coils & Rails
Ignition Leads
Speed Sensors
Trigger Discs
Software
PHLOX Control Units are highly flexible high-energy capacity spark ignition control devices. They are available in 3 versions up to 8, 12 or 16 cylinders. At the top of the family range and for bigger engines with up to 24 cylinders, HEINZMANN offers the IC24 ignition system, based on 2 PHLOX II IC12 in Master-Slave operation

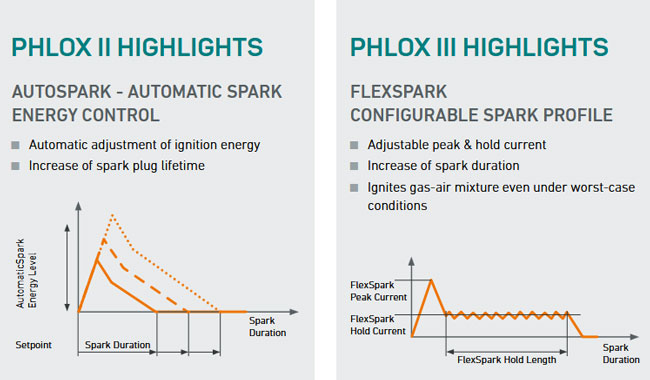

Engines operated with higher boost pressures or with the use of biogases and other low calorific gases require higher ignition energies or increased spark durations to avoid a misfiring of the cylinders. Using HEINZMANNs FlexSpark Technology ensures a stable engine operation even in difficult situations and provides the option to increase the engine efficiency.
Technical data
Gas Engines
CHP
GensetsTo reduce spark plug wear, PHLOX II Control Unit offers 32 levels of ignition energy which is automatically set to the required minimum by the use of the AutoSpark function.
Technical data
Gas Engines CHP Gensets
High-performance ignition coils with optimised output power and a separate earth connection are the perfect accessories to complement the HEINZMANN PHLOX II ignition control unit. They enable high output voltages when the engine is run continuously and are suitable for temperatures up to 125°C.
On the pre-assembled ignition rails, the coils are mounted directly on the rail. The cables are protected inside the rail profile, ensuring a long service life and reliable operation.
.
Spark plug connectors made of high-quality Teflon are resistant to high temperatures and voltages, and offer ideal insulation against sparks.
Both inductive sensors and Hall sensors are available with different lengths and thread sizes. Thanks to their robust design, inductive sensors are ideal for use in harsh ambient conditions. Compared to inductive sensors, the advantage of Hall sensors is that the output signal is independent of the speed and the distance from the sensor.
Trigger discs are available in various designs to cover all possible applications.
The DcDesk software is a configuration and visualisation tool for all digital HEINZMANN systems. It comes with all functions for commissioning, monitoring and maintenance/diagnosis.
