To complement the engine management systems, HEINZMANN offers not only input/output modules but also setpoint potentiometers for analogue and digital governors, as well as power supply units.
XIOSUC Input-Output Module
XIOSUC Input-Output Module
The modular, universal XIOS control system represents a new generation of ECUs. At its core lies the motherboard with a high-performance CPU and generous DRAM and FLASH memory. Thanks to the FPGA chip, the computing power can primarily be used for the CPU or PLC functions, as well as for control processes requiring a lot of processing power. In addition to the motherboard, several jumperless, configurable I/O modules can also be used. XIOS enables individual control functions based on CoDeSys (IEC 61131-3) or MATLAB®/Simulink® to be developed. It is also ideal for alarm and monitoring purposes.
Technical data
- Processor: 32 Bit 264 MHz
- Communication interfaces: Ethernet, CAN, RS-232, RS-485
- Display: 4.3" (optional)
- Degree of protection: IP20
- Power supply: 9...32 VDC
More information
Engine Types & Applications
Diesel Engines
Gas Engines
Dual-Fuel Engines
Turbines
Gensets
Industrial Plants
Ships
Locomotives
Industrial Vehicles
Digital Governors
SW 01-1-b
SW 02-10-b
Setpoint Adjusters for Digital Governors
To specify the setpoint for all HEINZMANN speed governors, we offer high-quality potentiometers in both a 1-turn and a 10-turn with additional resistors for shortcut or broken cable detection.
SW 01-1-b

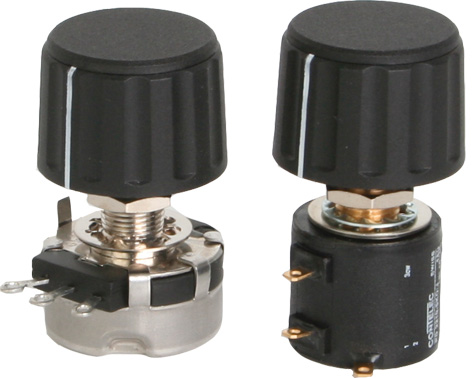

1-turn setpoint potentiometer for digital HEINZMANN governors.
SW 02-10-b
10-turn setpoint potentiometer for digital HEINZMANN governors.
Analogue Controls
SW 01-1-0
SW 02-10-0
SW 03-1-M-15 sec
SW 04-10-M-150 sec
SW 07-1-M-120 sec
ESW 01
SW 09-URI
EFP
Setpoint Adjusters for Analogue Governors
To specify the setpoint for analogue HEINZMANN speed governors, we offer many different types of potentiometers to meet different requirements. The range includes rotary potentiometers, motor potentiometers, electronic potentiometers as well as foot pedals and similar adjustment aids.
SW 01-1-0
1-turn setpoint potentiometer for HEINZMANN electronic speed governors.
SW 02-10-0
10-turn setpoint potentiometer for HEINZMANN electronic speed governors.
SW 03-1-M-15 sec
Speed setting potentiometers for HEINZMANN electronic speed governors. Permitting manual or electrical remote speed adjustment either.
Technical data
- Rise time: approx. 15 sec
More information
SW 04-10-M-150 sec
Speed setting potentiometers for HEINZMANN electronic speed governors. Permitting manual or electrical remote speed adjustment either.
Technical data
- Rise time: approx. 150 seconds
More information
SW 07-1-M-120 sec
Speed setting potentiometers for HEINZMANN electronic speed governors. Permitting manual or electrical remote speed adjustment either.
Technical data
- Rise time: approx. 120 seconds
More information
ESW 01
The ESW 01 electronic motor potentiometer is used in conjunction with the analogue HEINZMANN speed governors. It converts clocked pulses into an analogue speed setpoint signal that can be used for the electronic governor.
Technical data
- Rise time: min. 10 s / max. 35 s
More information
SW 09-URI
Setpoint Interface. Converting a current or voltage signal into an analogue speed setting signal.
Technical data
- Input range: 0 - 10 V or 0 - 20 mA
EFP (Electronic Food Pedal)
Electronic signal trandsducer, converting a rotary position to an analogue voltage signal processable by a speed governor
Technical data
- Angular rotation: 0-45°
- Output range: 1 - 5 V or 4 - 20 mA
Power Supplies
NG 01-2 / NSV 01-2
NG 09
NG 10
DC-DC Converter
NG 04 / NSV 0
NG 08 / NSV 05
Power Supply

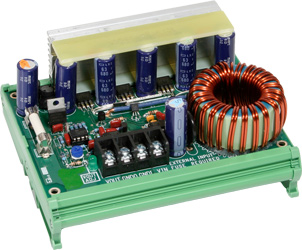

A supply voltage of 24 VDC is required to run HEINZMANN electronics governors. In order to ensure this, HEINZMANN offers various power supply units in different sizes to suit different power requirements. Some models also feature an emergency power supply so that the governor can continue working in the event of an emergency. For that HEINZMANN applies tried-and-tested components from PHOENIX CONTACT.
Power Supplies NG 01-2 / NSV 01-2
A three-phase power supply unit for analogue or digital speed governors with an emergency power supply.
- Maximum actuator size is the HEINZMANN StG 30
- Suitable for marine applications
More information
Power Supplies NG 09
A three-phase power supply unit for analogue or digital speed governors.
- Maximum actuator size is the HEINZMANN StG 180
More information
Power Supplies NG 10
A three-phase power supply unit for analogue or digital speed governors
- Maximum actuator size is the HEINZMANN StG 30
More information
DC-DC Converter
Voltage transformer from 24 V to 43 V for supplying actuators with a higher voltage.
More information
Power Supplies NG 04 / NSV 03
A one-phase power supply unit for analogue or digital speed governors with an emergency power supply.
- Maximum actuator size is the HEINZMANN StG 30
- Suitable for marine applications
More information
Power Supplies NG 08 / NSV 05
A three-phase power supply unit for analogue or digital speed governors with an emergency power supply.
- Maximum actuator size is the HEINZMANN StG 180
- Suitable for marine applications
More information
