Technologies empowering efficiency

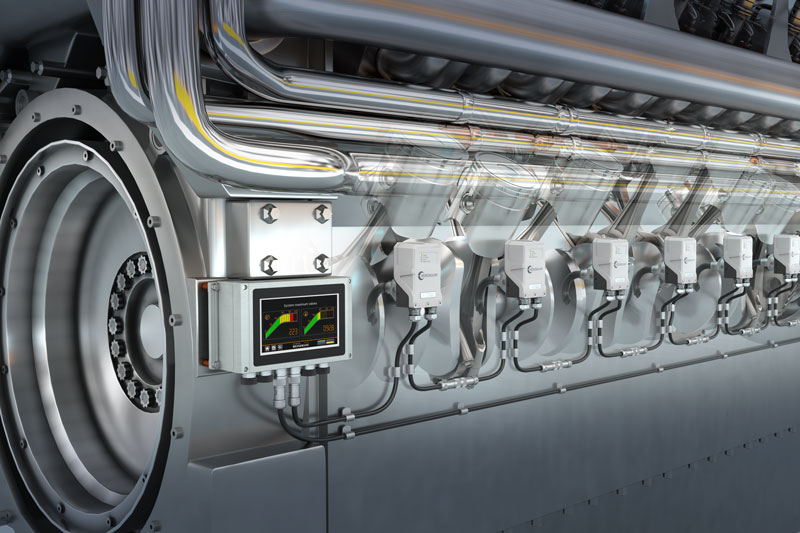

The state-of-the-art TRITON OMD Oil Mist Monitoring Systems from HEINZMANN have been specially developed to meet the needs of large combustion engines, such as those used in ships or power plants. TRITON OMD protects operating personnel and helps to prevent serious damage to the engine in good time. The impressive systems do not have any moving parts, and their electrical connection is simple to establish. Maintenance work and costs are minimised.

For system configuration please provide application specific information: Order Information.

Multiple protection at its best

  • Oil Mist Detection

    Oil Mist Detection

    Protect personnel and engine with HEINZMANN oil mist monitoring systems:

    • Avoidance of false alarms
    • Multi-channel measuring cell
    • ATEX compliant
    • Robust and maintenance-free construction
    • Decentralised system architecture for detecting hazardous oil mist concentrations
    • Reliably prevents crankcase explosions and engine damage

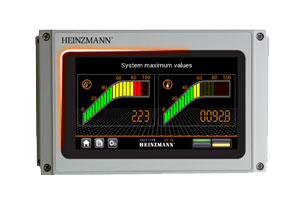

  • Central Unit

    Central Unit

    The central unit provides visualisation for each compartment of the crankcase.
    • Advanced visualisation of TRITON OMD sensor values, system configuration and connection to subordinate systems for alarm and data processing
    • Withstands harsh environmental conditions in the area of use
    • Suitable for direct installation on the engine or alternatively in the engine room
    • Can operate up to 16 sensors
    • Redundant power supply and communication lines ensure uninterrupted operation

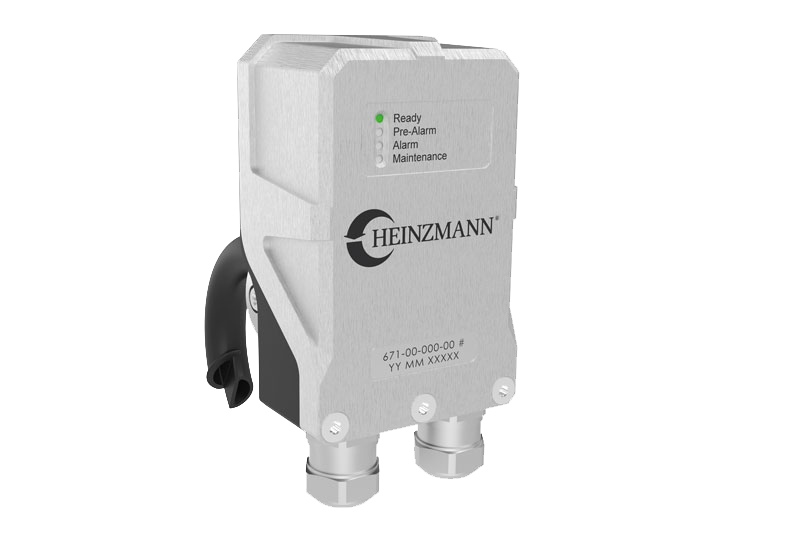

  • OMD Sensors

    OMD Sensors

    The sensors are the core elements of the TRITON Oil Mist Detection System. They can either be used together with the central unit from HEINZMANN or alternatively as an integral part of a customer's own higher-level engine safety system.
    • Sensors consist of two complementary parts: the sampling unit with integrated testing device and the sensor body with measuring arrangement
    • Installation of the sensor does not require access to the inside of the crankcase
    • Sensors are available in versions with bottom and side cable outlets
    • Active sampling is used to achieve the same excellent dynamic measurement quality regardless of the installation location
    • Special sampling design inside the sensor effectively protects the measuring optics from contamination

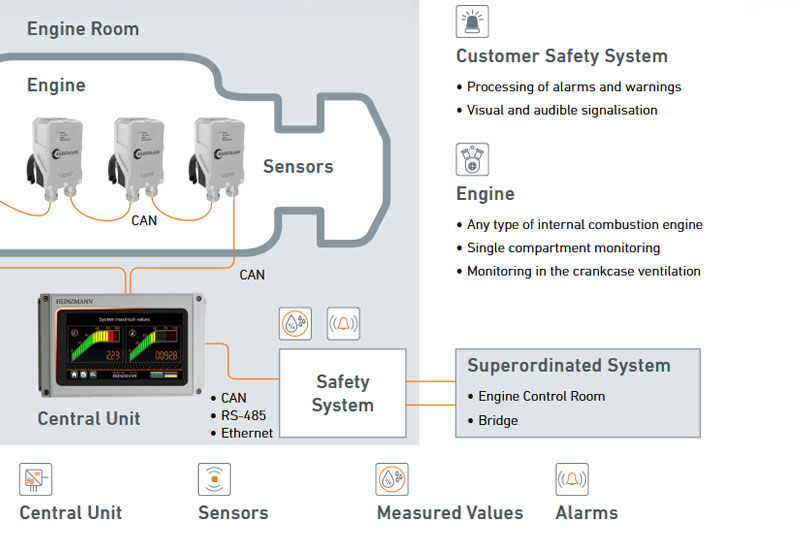

  • System with Central Unit

    System with Central Unit

    Sensors for monitoring the oil mist concentration in combination with a central unit for alarm processing.
    • Suitable for both new engines and retrofits
    • Easy integration into existing motor automation and safety systems

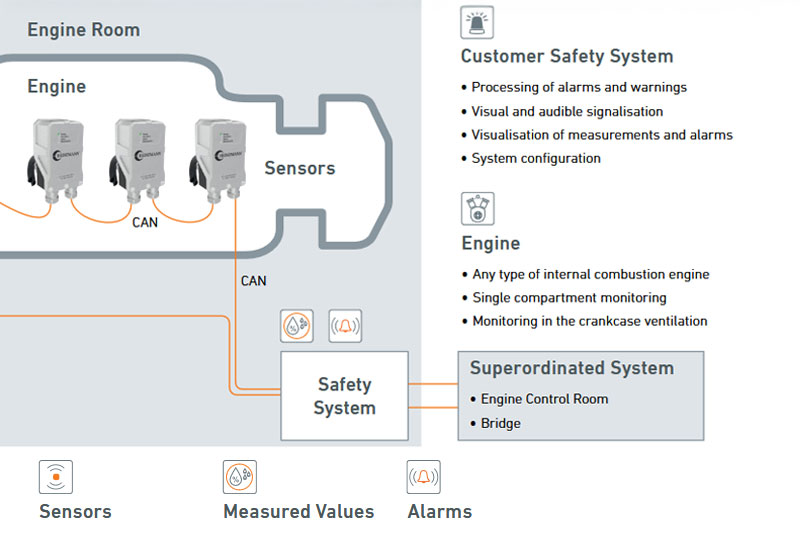

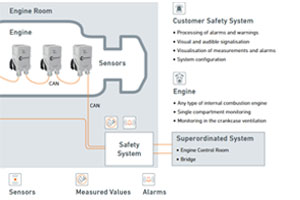

  • System without Central Unit

    System without Central Unit

    • Stand-alone sensors for seamless integration
    • Especially suitable for new engines
    • Reduced number of components
    • Significant cost reduction
