Dual-fuel system gas mixer based

ARTEMIS Dual-Fuel Systems are based on HEINZMANN's proven gas engine components and powerful actuation and governing units. They ensure a perfect gas-air mixture quality and high conversion ratios. Operating dual-fuel engines with up to 2 MW output, the gas controlled and gas mixer based systems are suitable for stationary applications as well as heavy-duty vehicles.

Dual-Fuel Management

Dual Fuel System Gas Mixer Based

  • System Gas Mixer Based

    System Gas Mixer Based

    In addition to the central element of the gas mixer, the gas mixer-based version of the ARTEMIS dual-fuel systems consists of a control unit, gas mixers, throttle valves with positioners and pressure and temperature sensors. Gas mixers are elementary in gas engine mixture control systems. They ensure the desired air fuel ration regardless of the operating conditions.
    Product Information
  • Control

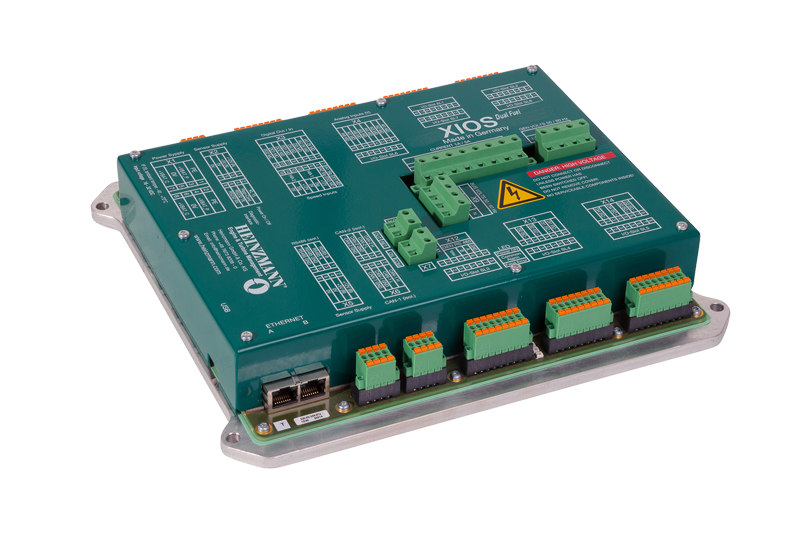

    Control

    XIOSDual Fuel is a modular and multifunctional governor for dual-fuel engines. The highly efficient governor offers control strategies for the diesel and gas side, sophisticated safety and monitoring strategies, gas line control and unrestricted diesel operation at all times.
    Product Information
  • Throttle Valves

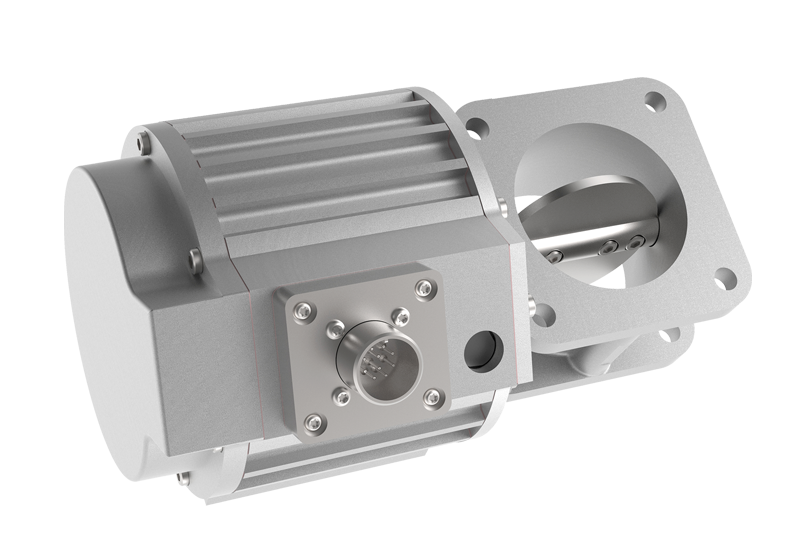

    Throttle Valves

    HEINZMANN throttle valves with integrated positioner are designed for small and medium-sized gas engines. The direct-acting integrated actuator operates in 4Q mode. It is supplied with proven contactless position feedback and integrated return spring.
    Product Information
  • Sensors

    Sensors

    The ARTEMIS system also contains sensors for pressure and temperature monitoring (gas, air, cooling water, exhaust gases).
    Product information
  • Knock Control

    Knock Control

    The ARIADNE control unit can detect knocking combustion individually on each cylinder (max. 20) and maintain optimum operation under all conditions to protect the engine from damage.
    Product Information
