Optimal control technology for any type of gas engine

HEINZMANN butterfly throttle valves control the quantity of the gas and air mixture. Furthermore, in special applications the throttle valve can be used as a gas valve to control mixture quality. The precise manufactured valves allow optimum engine control and an exceptional lifetime.


  • Throttle Valves
  • DK 50
  • DK 100
  • DK 140
  • DK 200
  • DK 300
  • DK 400

Throttle Valves

HEINZMANN throttle valves control the flow rate of the gas-air mixture. Thanks to the wealth of sizes from DK 50 to DK 400 and the dense design, these models can handle a wide range of power outputs and operating pressures. The control angle for the throttle valves is 75°. Both control directions can be used in equal measure.

Throttle Valves Uebersicht

  • Suitable for naturally aspirated engines and turbocharged engines
  • Suitable for all gas types
  • Bearings ensure little torque is required
  • Shaft and throttle valve made of stainless steel
  • Standard flange sizes
  • No maintenance required

DK 50

Technical data

  • Output range stoichiometric: 35 ... 125 kW
  • Output range lean-burn: 25 ... 85 kW
  • Diameter Ø: 42 mm
  • Operating temperature: -20 ... +150 °C
  • Max. boost pressure: 4 bar abs.

DK 100

Technical data

  • Output range stoichiometric: 70 ... 250 kW
  • Output range lean-burn: 50 ... 170 kW
  • Diameter Ø: 68 mm
  • Operating temperature: -20 ... +150 °C
  • Max. boost pressure: 4 bar abs.

DK 140

Technical data

  • Output range stoichiometric: 140 ...500 kW
  • Output range lean-burn: 100 ... 340 kW
  • Diameter Ø: 85 mm
  • Operating temperature: -20 ... +150 °C
  • Max. boost pressure: 4 bar abs.

DK 200

Technical data

  • Output range stoichiometric: 330 ... 1,200 kW
  • Output range lean-burn: 230 ... 840 kW
  • Diameter Ø: 115 mm
  • Operating temperature: -20 ... +150 °C
  • Max. boost pressure: 4 bar abs.

DK 300

Technical data

  • Output range stoichiometric: 750 ... 2,250 kW
  • Output range lean-burn: 500 ... 1,500 kW
  • Diameter Ø: 150 mm
  • Operating temperature: -20 ... +150 °C
  • Max. boost pressure : 4 bar abs

DK 400

Technical data

  • Output range stoichiometric: 2,250 ... 3,400 kW
  • Output range lean-burn: 1,500 ... 2,200 kW
  • Diameter Ø: 180 mm
  • Operating temperature: -20 ... +150 °C
  • Max. boost pressure: 4 bar abs.
  • Throttle Valves with Actuators
  • DK 100 / StG 3
  • DK 140 / StG 3+
  • DK 200 / StG 3+
  • DK 100 / StG 2010
  • DK 140 / StG 2040
  • DK 200 / StG 2080

Throttle Valves with Actuators

HEINZMANN throttle valves with actuators are the ideal components for ensuring optimal engine control, including for turbocharged engines. As throttle valves, they regulate the engine speed by metering the mixture accordingly, and boast an unusually long service life. What’s more, they can be used in special applications as a gas valve in order to control the air-fuel ratio. Alternatively, they can also be used as a turbo bypass valve.

Drosselklappen Aktuatoren Gruppe

  • Suitable for naturally aspirated engines and turbocharged engines
  • Available with return spring
  • High torque in both directions

DK 100 / StG 3

Technical data

  • Output range stoichiometric: 70 ... 250 kW
  • Steady state torque: approx. 1.5 Nm
  • Ø Throttle valve: 48 | 60 | 68 mm
  • Boost pressure at valve: max. 5.8 bar abs.
  • Response time: less than 40 ms

DK 140 / StG 3+

Technical data

  • Output range stoichiometric: 140 ... 500 kW
  • Steady state torque: approx. 3 Nm
  • Ø Throttle valve: 85 mm
  • Boost pressure at valve: max.8 bar abs.
  • Response time: less than 40 ms

DK 200 / StG 3+

Technical data

  • Output range stoichiometric: 300 ... 1.200 kW
  • Steady state torque: approx. 3 Nm
  • Ø Throttle valve: 80 | 90 | 100 | 110 mm
  • Boost pressure at valve: max.4 bar abs.
  • Response time: less than 40 ms

DK 100 / StG 2010

Technical data

  • Output range stoichiometric: 70 ... 250 kW
  • Steady state torque: 0.7 Nm
  • Ø Throttle valve: 68 mm
  • Boost pressure at valve: max. 4 bar abs.
  • Response time: max. 60 ms

DK 140 / StG 2040

Technical data

  • Output range stoichiometric: 140 ... 500 kW
  • Steady state torque: 3.4 Nm
  • Ø Throttle valve: 85 mm
  • Boost pressure at valve: max. 4 bar abs.
  • Response time: max. 70 ms

DK 200 / StG 2080

Technical data

  • Output range stoichiometric: 350 ... 1.200 kW
  • Steady state torque: 4.2 Nm
  • Ø Throttle valve: 110 mm
  • Boost pressure at valve: max. 4 bar abs.
  • Response time: max. 85 ms
  • Throttle Valves with Positioner
  • DK 50 / StG 3010.10-PD
  • DK 100/StG 3-PD | DK 100/StG 3+-PD
  • DK 200/StG 3-PD | DK 200/StG 3+-PD
  • DK 140 / StG 2080-PD

Throttle Valves with Positioner

HEINZMANN throttle valves with integrated positioner are intended for small and medium-sized gas engines. The direct-acting integrated actuator operates in 4Q mode. It is supplied with the tried-and-tested contactless position feedback and an integrated return spring.

Throttle Valve with Positioner

  • Fast response
  • No maintenance required
  • Compact

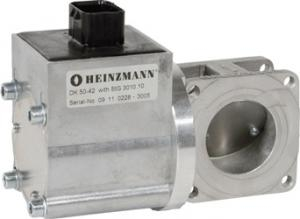

DK 50 / StG 3010.10-PD

Technical data

  • Voltage supply: 24 VDC / 3 A
  • Ambient temperature: -30 ... +90 °C
  • Ø Throttle valve: 30 ... 50 mm
  • Boost pressure at valve: max. 4 bar abs.
  • Response time: 100ms
  • Degree of protection: IP65

More information

Technical Drawing

Data Sheet

DK 100/StG 3-PD | DK 100/StG 3+-PD

Technical data

  • Voltage supply: 18 ... 32 VDC, nom. 24 VDC
  • Operating temperature range: -20 ... +100 °C
  • Ø Throttle valve: 48 / 60 / 68 mm
  • Boost pressure at valve: max. 5.8 bar abs.
  • Response time: less than 40 ms

DK 200/StG 3-PD | DK 200/StG 3+-PD

Technical data

  • Voltage supply: 18 ... 32 VDC, nom. 24 VDC
  • Operating temperature range: -20 ... +100 °C
  • Ø Throttle valve : 80 / 90 / 100 / 110 mm
  • Boost pressure at valve: max. 4 bar abs.
  • Response time: less than 40 ms

DK 140 / StG 2080-PD

Technical data

  • Voltage supply: 18 … 33 VDC
  • Ambient tempertaure: -25 … +90 °C
  • Ø Throttle valve: 85 mm
  • Boost pressure at valve: max. 8 bar (abs.)
  • Response time: 90 ms

More information

Technical Drawing

Data Sheet

  • Throttle Valves with Governor
  • DG 3010.10 / DK 50

Throttle Valves with integrated Governor

The HEINZMANN throttle valve with integrated speed control is intended for small and medium-sized gas engines. The throttle valve regulates the flow rate of the air-fuel mixture in order to achieve the desired speed, thereby facilitating optimum engine control. It is supplied with the tried-and-tested contactless position feedback and, if necessary, an integrated return spring.



Throttle Valve DK 140

  • Fully integrated solution
  • Easy to install
  • May be installed in any position

DG 3010.10 / DK 50

Technical data

  • Operating voltage: 24 VDC / 6 A
  • Ambient temperature: -30 .. +90 °C
  • Ø Throttle valve: 42 mm
  • Boost pressure at valve: max. 4 bar abs.
  • Response time: 100 ms
