Optimal control technology for any type of diesel engine

Integrated Solutions

HEINZMANN offers one of the most extensive ranges of speed governors for large engines. Their reliability, durability and performance have helped them to gain an outstanding reputation on the market. HEINZMANN’s customers include renowned engine manufacturers from a wide range of industries. The combined speed governors presented here unite the functions of a control unit and actuator in a single compact design. As such, they offer the greatest possible degree of flexibility when it comes to choosing the installation position, and can be used as a perfect replacement for governors made by other manufacturers.

Digital Control Systems

  • Integrated Governors
  • DG 2080.11
  • DG 3005.10 / DG 3010.10

Integrated Speed Governors

Integrated speed governors from HEINZMANN combine the capabilities and properties of brushless actuators with the possibilities afforded by a high-quality digital speed governor. They have been designed for applications that require both extensive control functions and outstanding actuation properties. They come with many inputs and outputs, thus offering a wealth of different options and enabling a variety of important signals to be incorporated into the control system.

Integrierte Drehzahlregler

  • Excellent control management
  • Reliability
  • Endurance

DG 2080.11

This model combines the StG 2080 actuator and DC 11 digital speed governor to provide precise and fast control whilst consuming little energy.

Technical data

  • TorqueMAX: 8 Nm
  • RotationNOMINAL: 4 Nm
  • Rotation travel: 68°
  • Response time: 100 ms
  • Weight: about 8 kg

 More information

I/O Overview

Technical Drawing

Data Sheet



Engine Types & Applications

Diesel EnginesDiesel Engines

GensetsGensets

DG 3005.10 / DG 3010.10

A combination of the StG 3005/3010 actuators and DC 10 digital speed governor, designed for direct installation on the engine.

Technical data

  • TorqueMAX: 0.3 / 0.6 Nm
  • RotationtNOMINAL: 0.18 / 0.36 Nm
  • Rotation travel: 53° / 50°
  • Response time: 200 ms
  • Weight: about 1.2 kg

More information

I/O Overview

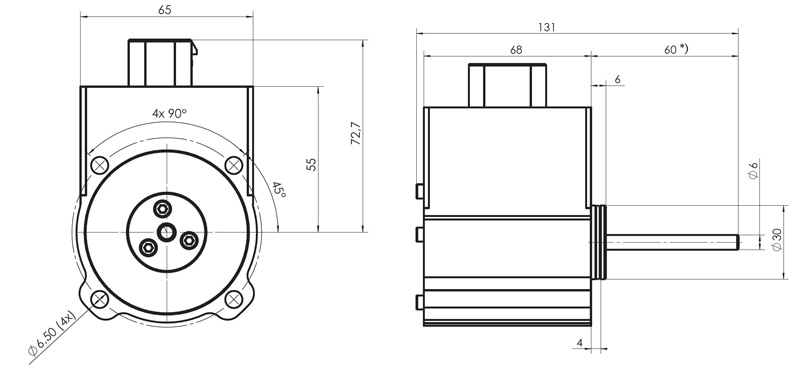

Technical Drawing

Data Sheet

Engine Types & Applications

Diesel EnginesDiesel Engines

GensetsGensets
